CD드라이브

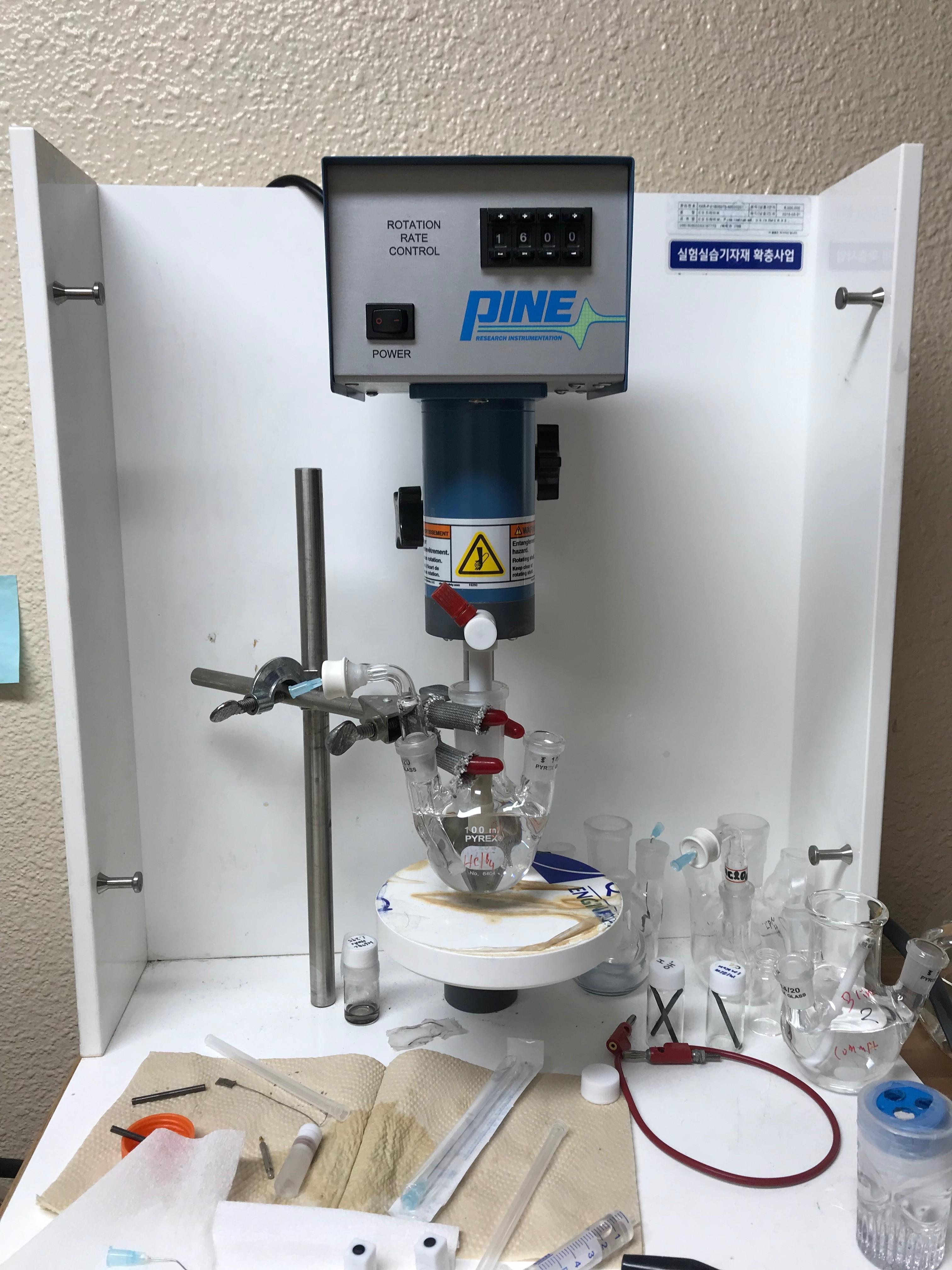

Rotating Ring-Disk Electrode System

DRIS No.	DRIS-1-0090
시설장비등록번호	NFEC-2019-03-255117
보유기관	경북대학교
담당자
연락처
이메일

장비정보

모델명	AFMSRCE	제작사	Pine Research
취득일자	2016-05-31	취득금액	6,000,000원
5대 미래산업 분류	해당없음	활용용도	시험
표준분류	전기/전자장비 > 측정시험장비 > 전압/전류/전력측정시험장비
장비위치	대구광역시 북구 대학로 80 (산격동) 1370 경북대학교 화학관 F1 119
장비설명	The MSR rotating electrode is the most popular rotating electrode configuration worldwide. The MSR now includes both CE and ETL marks. This flexible design may be used with Rotating Disk Electrodes (RDE), Rotating Ring-Disk Electrodes (RRDE), and Rotating Cylinder Electrodes (RCE). - Adjustable range from 50 to 10,000 RPM - Accuracy within 1% of the reading display - CE and ETL mark - Silver-carbon brush contacts. Red is for the disk, Blue is for the ring.
구성 및 기능	Power 100 - 240 VAC, +/-10%; 50/60 Hz; 2A Shipping Information shipping weight: 60 pounds (27 kg) shipping dimensions: 24.0 x 24.0 x 24.0 in (61 x 61 x 61 cm) Dimensions (L x W x H) control unit: 11.4 x 10.1 x 5.75 in (29 x 26 x 15 cm) rotator enclosure: 18.8 x 15.5 x 21.0 in (48 x 40 x 54 cm) Operating Temperature 10 ºC to 40 ºC (50 ºF to 104 ºF) Motor motor power: 15 W supply voltages: +30 VDC, –24 VDC motor type: permanent magnet Motor Protection 2 Amp thermal-type circuit breaker current limited power supplies Maximum Continuous Torque 28.3 millinewton-meters Rate Control closed loop servo-system temperature compensated tachometer mounted on motor shaft Rate Display 4 ½ digit display indicates rotation rate (RPM) Rate Accuracy 100 to 200 RPM: accurate to within ± 2 counts of display reading 200 to 10,000 RPM: accurate to within ± 1% of display reading Controls front panel: 10-turn rotation rate control knob button to reset circuit breaker back panel: power switch Rotation Rate Input allows optional external signal to control rotation rate (banana jack) selectable control ratio: 1 RPM/mV (default) 2 RPM/mV 4 RPM/mV Rotation Rate Output allows optional external monitoring of rotation rate (banana jack) output signal ratio: 1 mV/RPM (± 1.0%) Rotator Motor Stop back panel input optional digital motor stop signal (banana jack) Earth Ground metal binding post (banana jack) connects to ground lead of power cord and to control unit chassis Common Jacks DC common (3 black banana jacks), isolated from earth ground Slew Rate of Motor approximately 300,000 RPM/sec maximum (no load) Bandwidth > 50 Hz, -1 dB (at 1000 RPM peak to peak modulation on a 2000 RPM base rate)
사용/활용예	The Pine Research Instrumentation AFMSRCE rotator is an electrochemical measuring instrument often used for fundamental research on battery and fuel cell materials. This measuring instrument bears the CE Mark and ETL Mark and is intended for use with most international power configuration standards. As the most recent addition to our popular electrode rotator family, the AFMSRCE may be used with Rotating Disk Electrodes (RDE), Rotating Ring-Disk Electrodes (RRDE), and Rotating Cylinder Electrodes (RCE). The rotation rate of the electrode may be read from the LCD display on the front panel, and the rate may be adjusted using the knob located just below this display . The rotation rate is adjustable over a range from 50 to 10,000 RPM and is accurate to within 1% of the reading on the display. A voltage output signal that is proportional to the rotation rate is available on the front panel. This signal may be used to monitor the rotation rate using an external voltmeter or data acquisition system.
이용안내
유의사항

이용료안내

담당자에게 문의하시기 바랍니다.
