광학영상장비(형광광도계)

Lumina cence and Fluorescence Imaging System

DRIS No. DRIS-1-0485
시설장비등록번호 NFEC-2011-09-148237
보유기관 경북대학교
담당자
연락처
이메일

장비정보

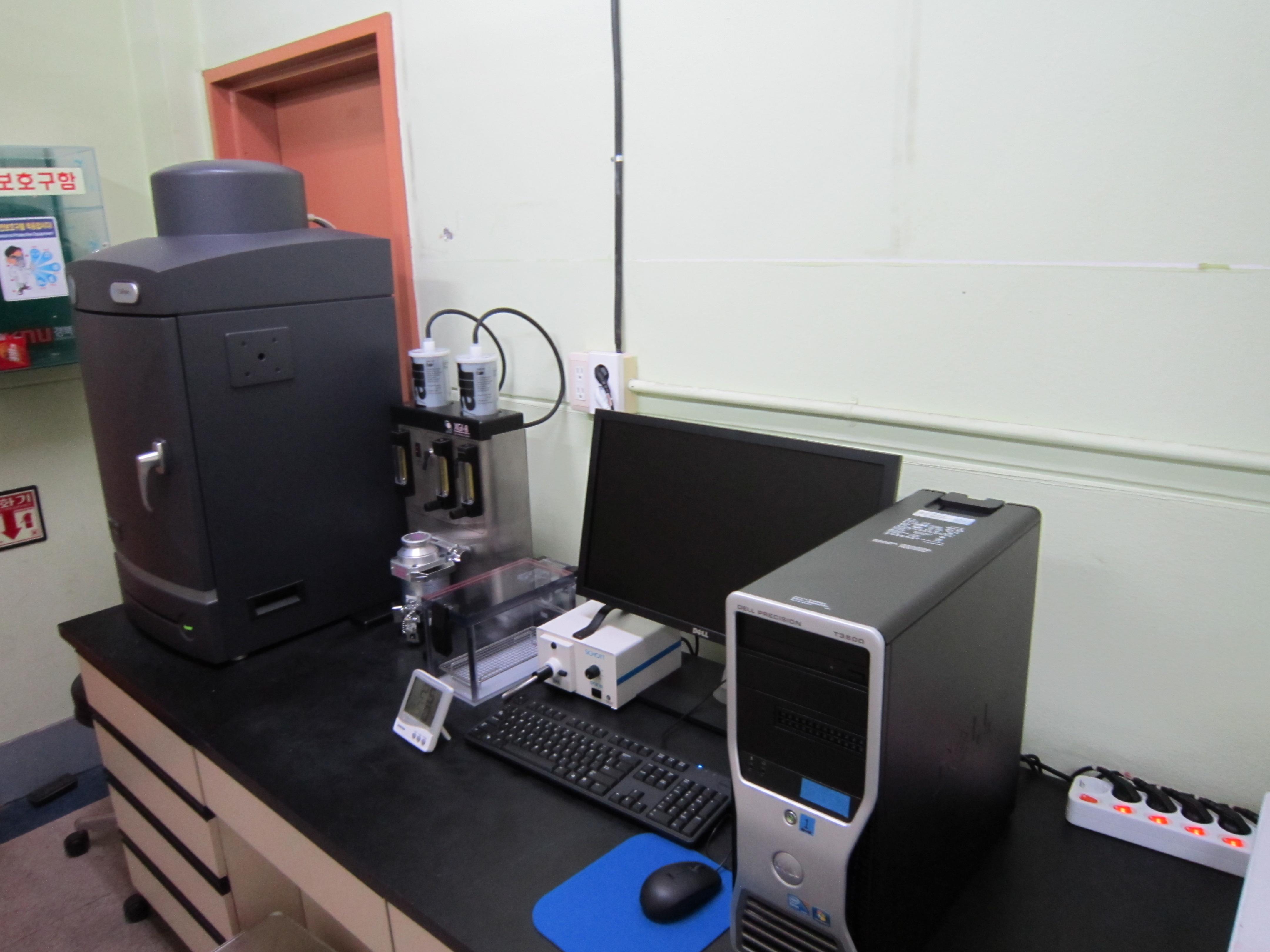

모델명 IVIS Lumina II 제작사 Caliper Life Sciences
취득일자 2011-08-04 취득금액 190,629,000원
5대 미래산업 분류 반도체,헬스케어 활용용도 시험
표준분류 광학/전자영상장비 > 이미지분석장비 > 시험관내화학형광이미지분석기
장비위치
대구광역시 중구 국채보상로 680 (동인동2가) 101 경북대학교 의과대학 신관 F1층 102
장비설명 1. In Vivo Optical Imaging System provide a high-resolution high-sensitivity imaging system for in vivo and in vitro applications.
2. This system performs quantitative in vitro and in vivo assays using reporter cells tagged with both fluorescence and bioluminescence. In vivo assays done in parallel using dual reporters This system will allow researchers to differentiate increases in cell proliferation form increase in specific gene expression.
3. The CCD camera(-90?C)provides high-efficiency optics and NIST traceable absolute calibrations.
4. The heated stage (20-40?C) within the imaging chamber keeps anesthetized test subjects warm during imaging sessions.
5. The moveable stage adjusts field of view from 5 to 12.5 cm(5positions) so that one to three mice or one rats can be imaged per session.
구성 및 기능 Components
1. IVIS Lumina II System 1 SET
1) High Sensitivity and High Resolution CCD (Charge Coupled Device) Camera
2) Imaging Chamber
3) Optical Imaging Components
4) Specimen Warming System
5) Acquisition and Analysis System
2. Lumina II Standard filter set for Fluorescence Imaging Components 1 SET

Specification
1. Lumina II System
1) High Sensitivity and High Resolution CCD (Charge Coupled Device) Camera
- Sensor : Back-thinned back-illuminated cooled Grade 1 CCD
- CCD Size: 13.3 x 13.3 mm
- Imaging Pixels: 1024 x 1024
- Quantum Efficiency: > 85% 500-700 nm;
> 30% 400-900 nm
- Pixel Size: 13 microns
- Min. Detectable Radiance 100 photons/s/sr/cm2
- Min Field of View (FOV) 5 x 5 cm
- Max Field of View (FOV) 12.5 x 12.5 cm
-Min Image Pixel Resolution 50 microns
- Read Noise: < 3 electrons for bin=1 2 4 ;
< 5 electrons for bin=816
- Dark Current (Typical): < 120 electrons/s/cm2 or 2x10-4 electrons/s/pixel
- Minimum Detectable Radiance: 100 photons/s/sr/cm2
-
사용/활용예
이용안내
유의사항

이용료안내

담당자에게 문의하시기 바랍니다.
