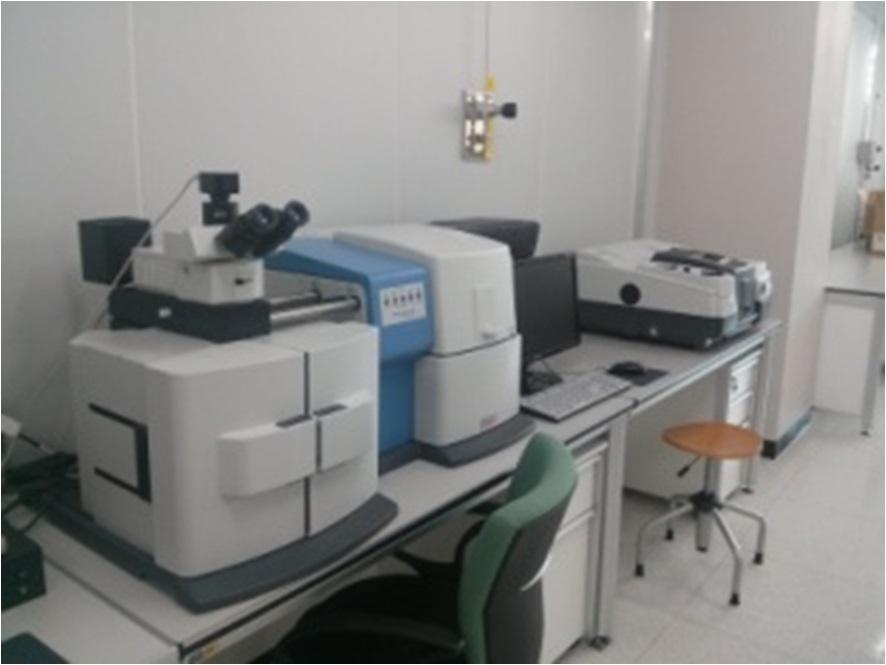

라만분광분석기

Raman spectrometer

DRIS No. DRIS-19-0547
시설장비등록번호 NFEC-2013-03-177248
보유기관 대구경북과학기술원
담당자
연락처
이메일

장비정보

모델명 Nicolet Almega XR 제작사 Thermo Fisher Scientific
취득일자 2012-11-07 취득금액 231,828,348원
5대 미래산업 분류 헬스케어 활용용도 시험
표준분류 화합물전처리/분석장비 > 분광분석장비 > 라만분광기
장비위치
대구광역시 달성군 현풍면 테크노중앙대로 333 50-1 대구경북과학기술원 중앙기기센터 205 소자클린룸 F3 304
장비설명 Raman spectroscopy is a spectroscopic technique based on inelastic scattering of monochromatic light usually from a laser source. Inelastic scattering means that the frequency of photons in monochromatic light changes upon interaction with a sample. Photons of the laser light are absorbed by the sample and then reemitted.
구성 및 기능 System Performance
▶ Dual lasers : 532nm 780nm
▶ Spectral Range :
For 780nm excitation : 100 ~ 3100cm-1 Raman shift
For other lasers : 100 ~ 4000cm-1 Raman shift
▶ Spectral resolution : 2cm-1 FWHM(1cm-1 per CCD pixel element)
▶ Spatial resolution : Diffraction limited(1micron)
▶ Confocal resolution : 2micron

System Configuration
1) Almega XR Mainframe
2) Confocal Raman Microscope with size selectable aperture
3) Darkfield Brightfield reflective light illumination
4) Automated aperture and alignment optics (Semi Auto or better)
5) Integrated Calibration Source (Neon Bulb or Silicon)
6) High-sensitivity extended range CCD Detector
7) Optical/Raman Microscope (Olympus BX 41 or better)
8) 10x objective
9) OMNIC 8.x Software
사용/활용예 Frequency of the reemitted photons is shifted up or down in comparison with original monochromatic frequency which is called the Raman effect. This shift provides information about vibrational rotational and other low frequency transitions in molecules. Raman spectroscopy can be used to study solid liquid and gaseous samples.
이용안내
유의사항

이용료안내

담당자에게 문의하시기 바랍니다.
